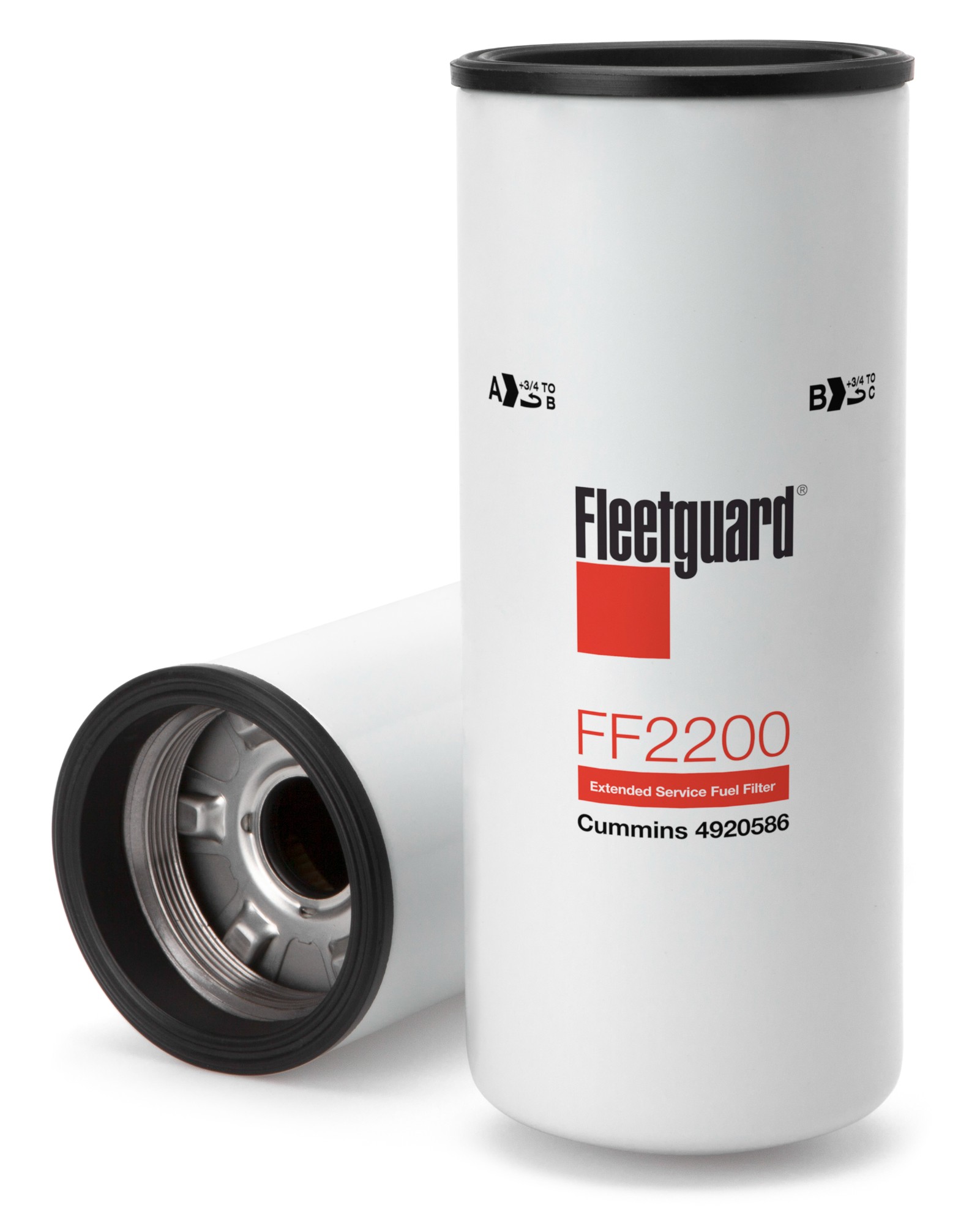

FF2200 spin-on fuel filter

1. Product Overview

The Fleetguard FF2200 spin-on fuel filter is a premium pressure-side fuel filtration solution for modern Cummins ISX heavy-duty diesel powertrains. Built with patented StrataPore multi-layer filter media and thick anti-corrosion metal housing, it delivers superior contaminant holding capacity and stable flow performance under high fuel pressure. As an extended-service OEM-grade filter, FF2200 supports long maintenance cycles for highway trucks, tractors and large commercial vehicles, effectively solving fuel system wear, injector clogging and water corrosion problems.

2. Core Features

1. StrataPore Multi-Layer Filter Media: 13.7μm filtration efficiency up to 98.7%, strong dirt holding capacity, long service life

2. Pressure-Side Spin-On Structure: Tool-free quick replacement, integrated sealing gasket, no leakage risk

3. High Pressure Resistant Housing: Withstands up to 700psi burst pressure, anti-vibration & anti-rust for harsh long-haul conditions

4. Efficient Water Separation: Separates free water from diesel to avoid injector rust and cavitation damage

5. Exact OEM Matching: Direct replacement for Cummins original part 4088272 / 4920586, no modification required

6. Extended Service Design: Matches Cummins Enforcer engine program, longer replacement cycle than standard filters

3. Technical Specifications

• Part Number: FF2200

• Brand: Fleetguard (Cummins Filtration)

• Filter Type: Spin-on pressure side diesel fuel filter

• Filter Media: StrataPore composite media

• Filtration Rating: 13.7μm, 98.7% efficiency (SAE J1985 standard)

• Thread Size: M72 X 2-7H INT internal thread

• Overall Height: 228.19 mm (8.984 inch)

• Outer Diameter: 93.98 mm; Gasket OD: 97 mm, Gasket ID: 78.74 mm

• Max Flow Rate: 304.32 gph

• Burst Pressure: 700 psi

• Fuel Type: Diesel

• Without standpipe design

4. Compatible Engine & Vehicle Models

• Cummins Engines: ISX12, ISX15, ISX565 series heavy-duty engines

• Truck Brands: Peterbilt, Kenworth, Freightliner, International long-haul semi trucks

• Application: Highway tractors, heavy-duty transport trucks, large commercial fleets

5. Cross Reference Part Numbers

• Cummins OEM: 4088272, 4920586

• Baldwin: BF7766, BK6440

• Donaldson: P552200, P903233

• WIX: 33711, 533711

• Luber-Finer: LFF2201

• Fram: P9644, Carquest: 86711

6. Product Benefits

• Protect high-pressure fuel pumps, injectors and fuel rails from abrasive particle wear

• Reduce injector failure rate, cut expensive fuel system repair costs

• Optimize diesel combustion efficiency, improve vehicle power and fuel economy

• Extended service interval lowers fleet overall maintenance cost

• Rugged construction adapts to high temperature, vibration and poor fuel quality

• Genuine Fleetguard quality ensures engine warranty compliance

7. Usage & Maintenance Notes

1. Replace FF2200 strictly follow Cummins engine official maintenance schedule

2. Release fuel system pressure before disassembly to avoid fuel spray

3. Lubricate new filter gasket with clean diesel during installation to prevent air leakage

4. Suitable only for diesel pressure-side fuel circuits, not for primary suction-side filtration

5. Store in dry environment to avoid gasket aging before installation
